M12 Drill/Driver Friction Fit Holder

Released

LinksPrintables

Filesm12-friction-fit-driver-2462.3mfm12-friction-fit-driver-2462.stl

Summary

Section titled “Summary”

A parametric design intended to keep the non-Fuel drill/driver combo held in place during travel in an RV. It should be a one-handed remove and work under-desk or on wall.

Parametric

Section titled “Parametric”

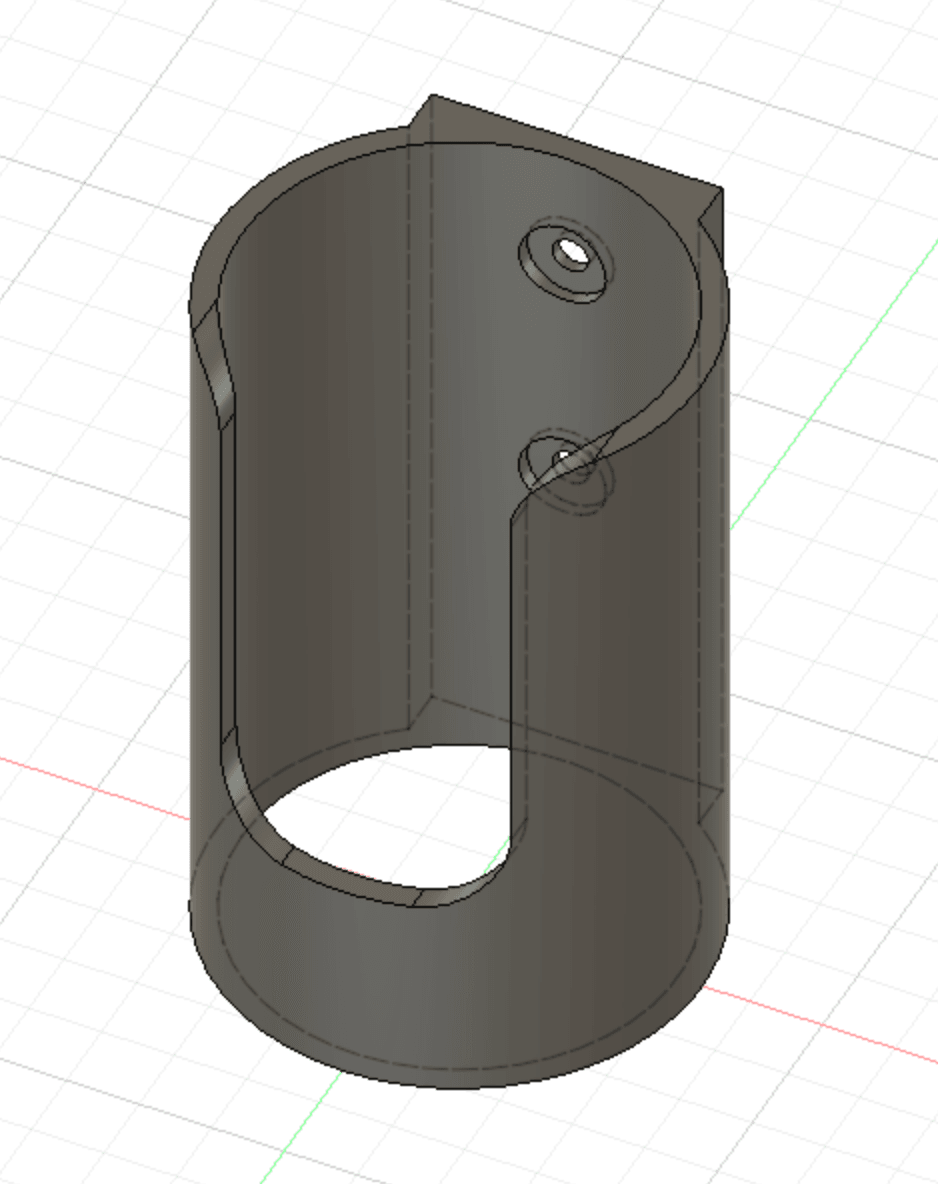

The Fusion 360 file was built with a single User Parameter1:innerDia which is the inner diameter of the main cylindrical shape. The rest of the design should generate from there for most reasonable and possibly unreasonable values of innerDia.

The following are parameters used for the tools I own:

  • 2462-20 Driver - 55mm
    • Printed nicely with PETG - tight friction fit
  • 2407-20 Drill - 60mm
    • Printing

Mesh Files for Slicing

Section titled “Mesh Files for Slicing”

m12-friction-fit-driver-2462.3mf 3MF File for 2462-20 M12 Driver

m12-friction-fit-driver-2462.stl STL File for 2462-20 M12 Driver

Footnotes

Section titled “Footnotes”

  1. User Parameters in Fusion 360 are variables that are able to be set by the user to change parameters of the design.

    You can edit them by being in the Design workspace and opening the Modify menu. At the bottom of that menu is the option “Change Parameters” and clicking it will present a new dialog with a grid of any available user parameters. ↩
